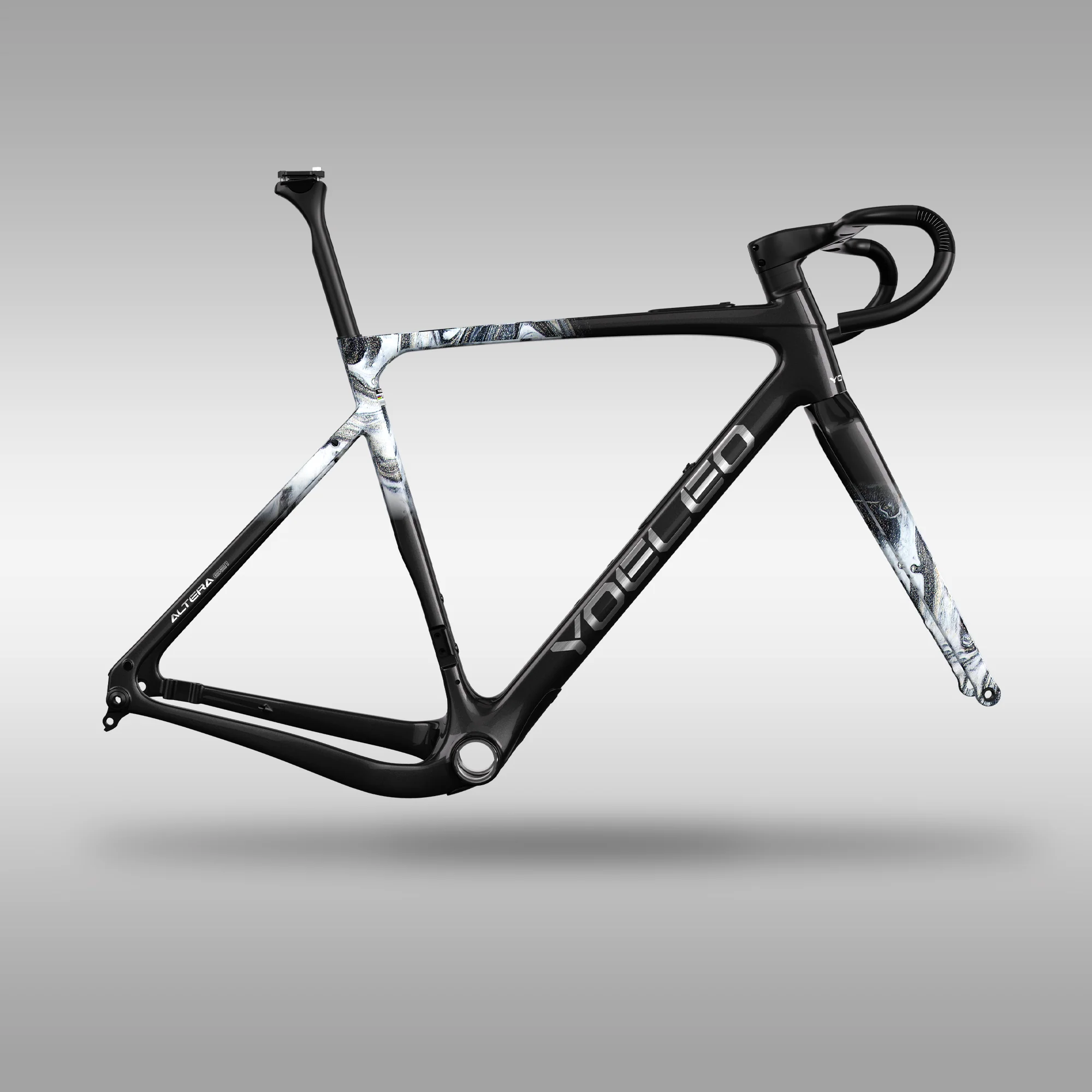

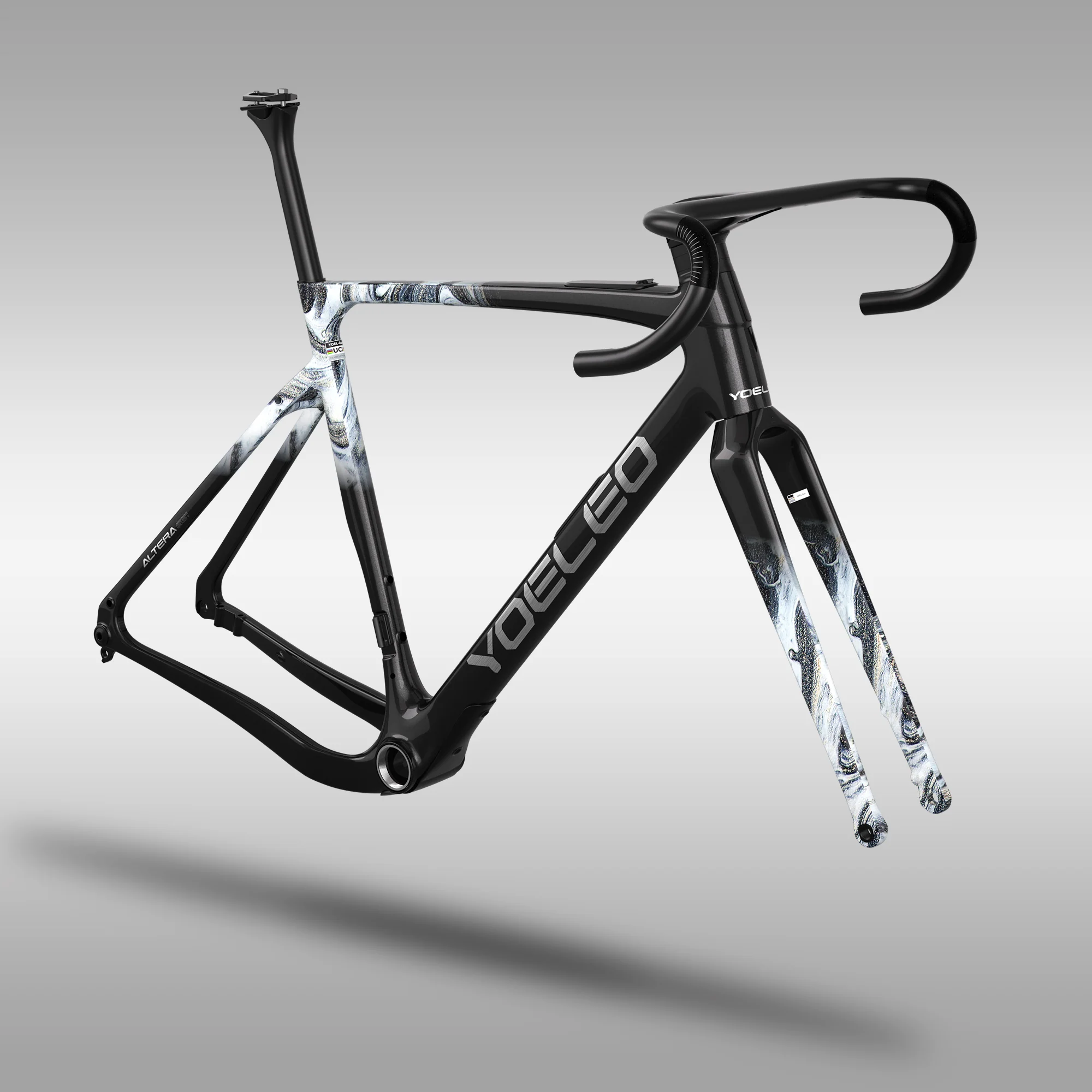

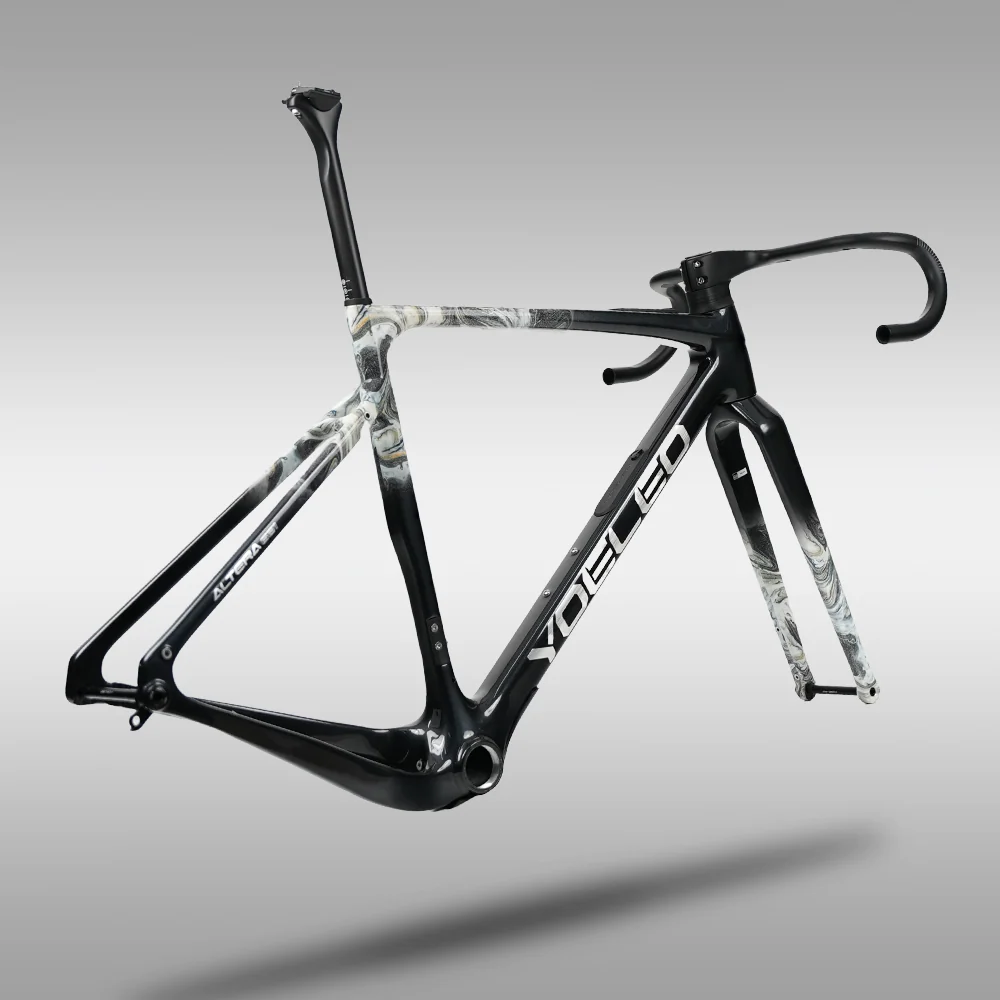

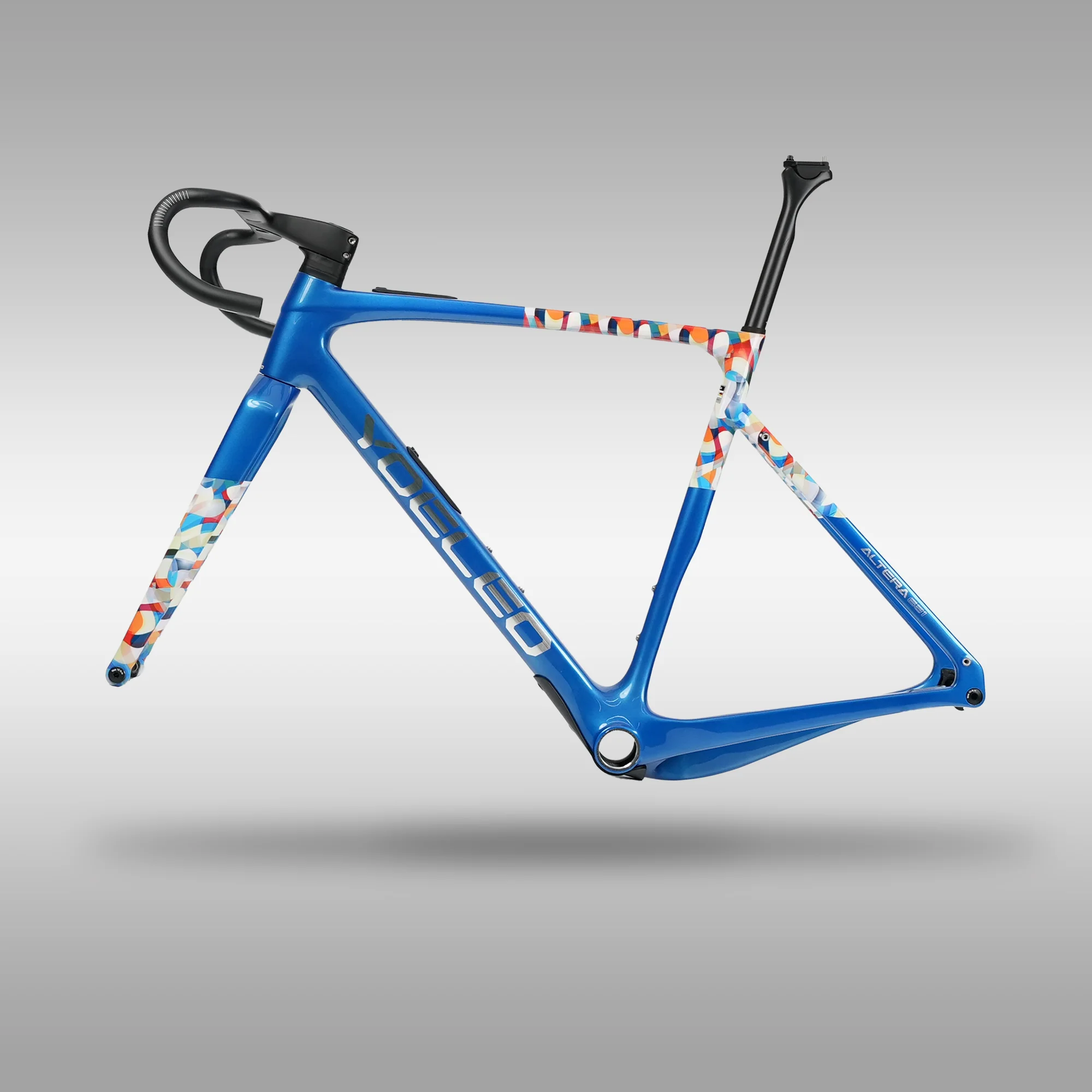

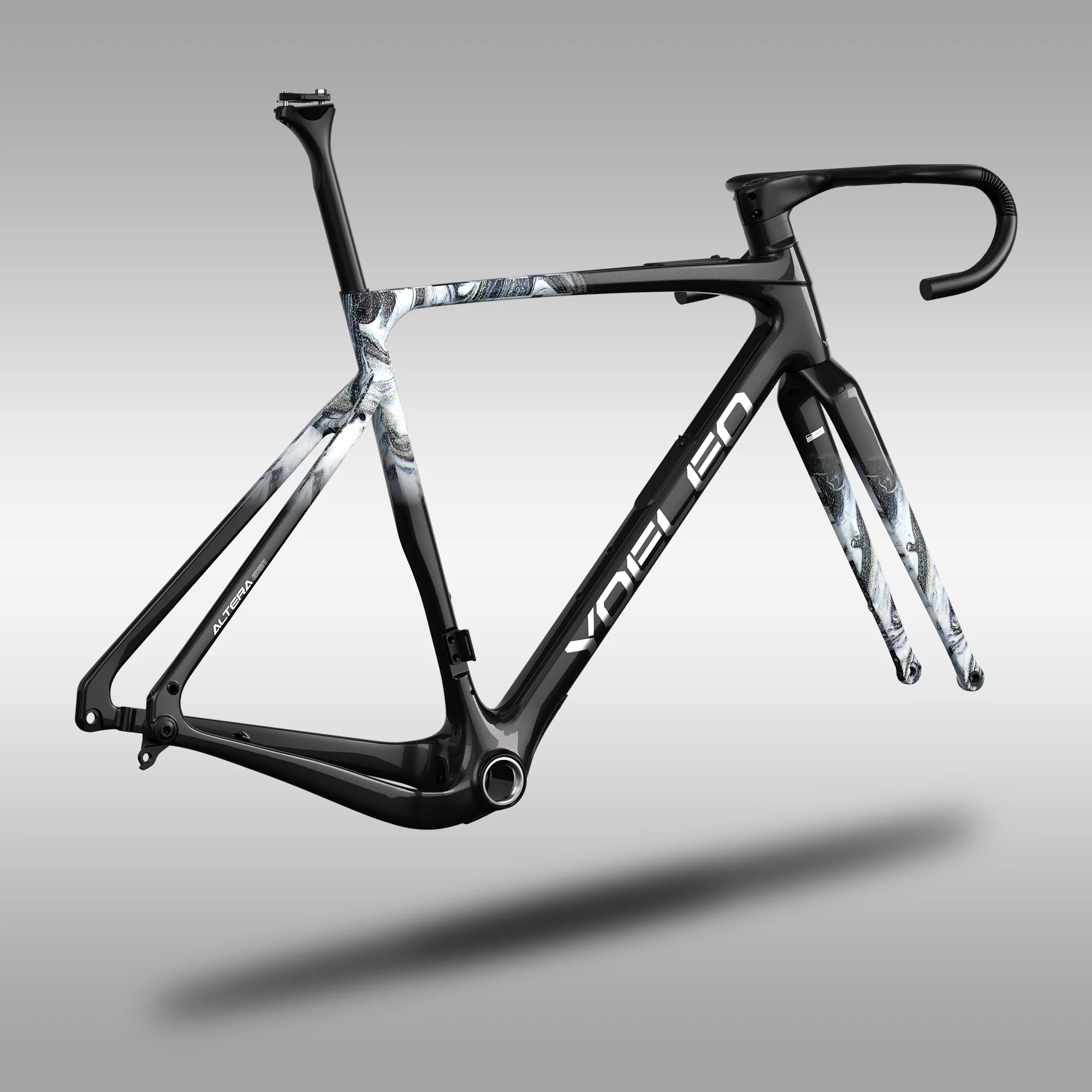

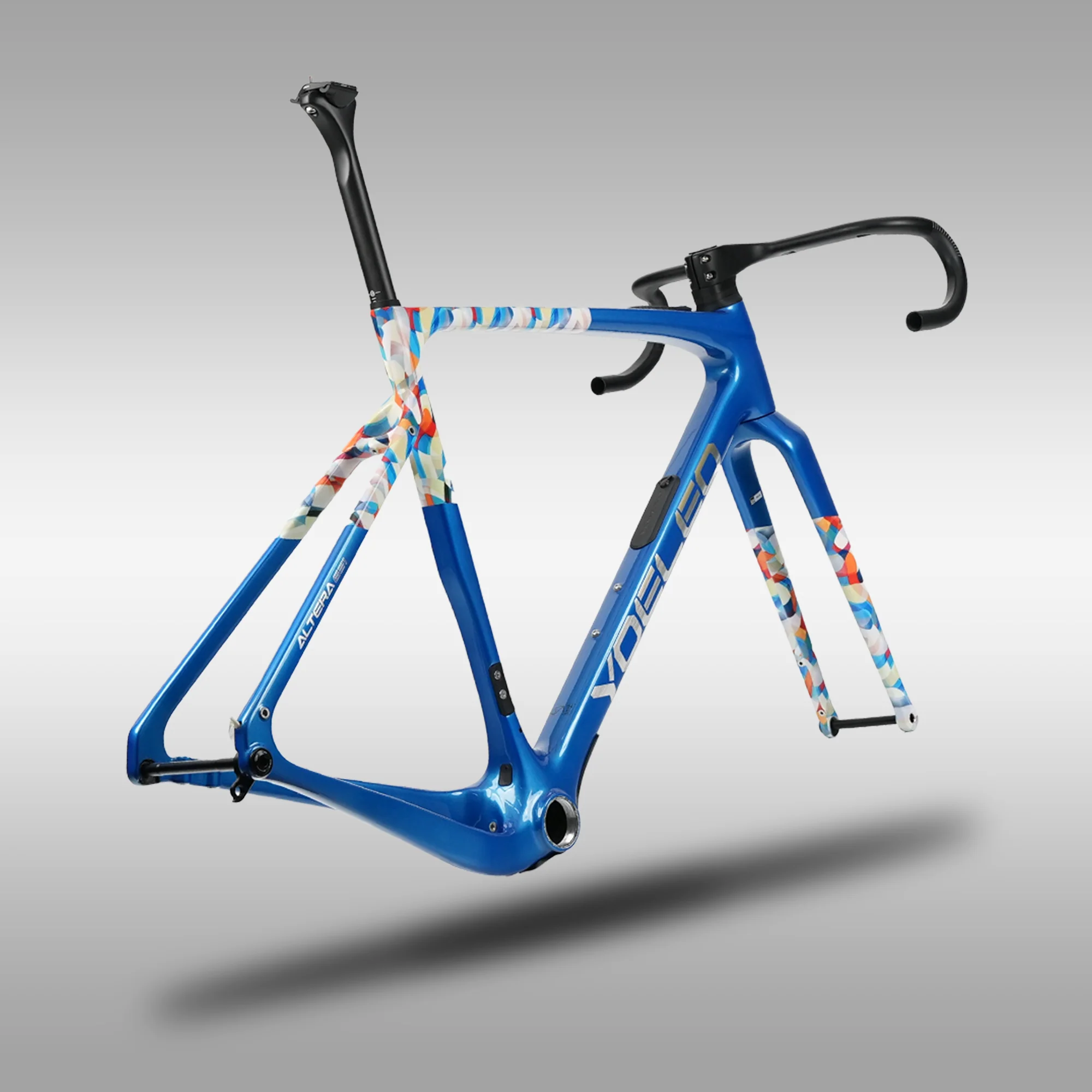

Yoeleo Altera G21 DB Gravel Frameset

1.650,00 €

Yoeleo Altera G21 DB Frameset

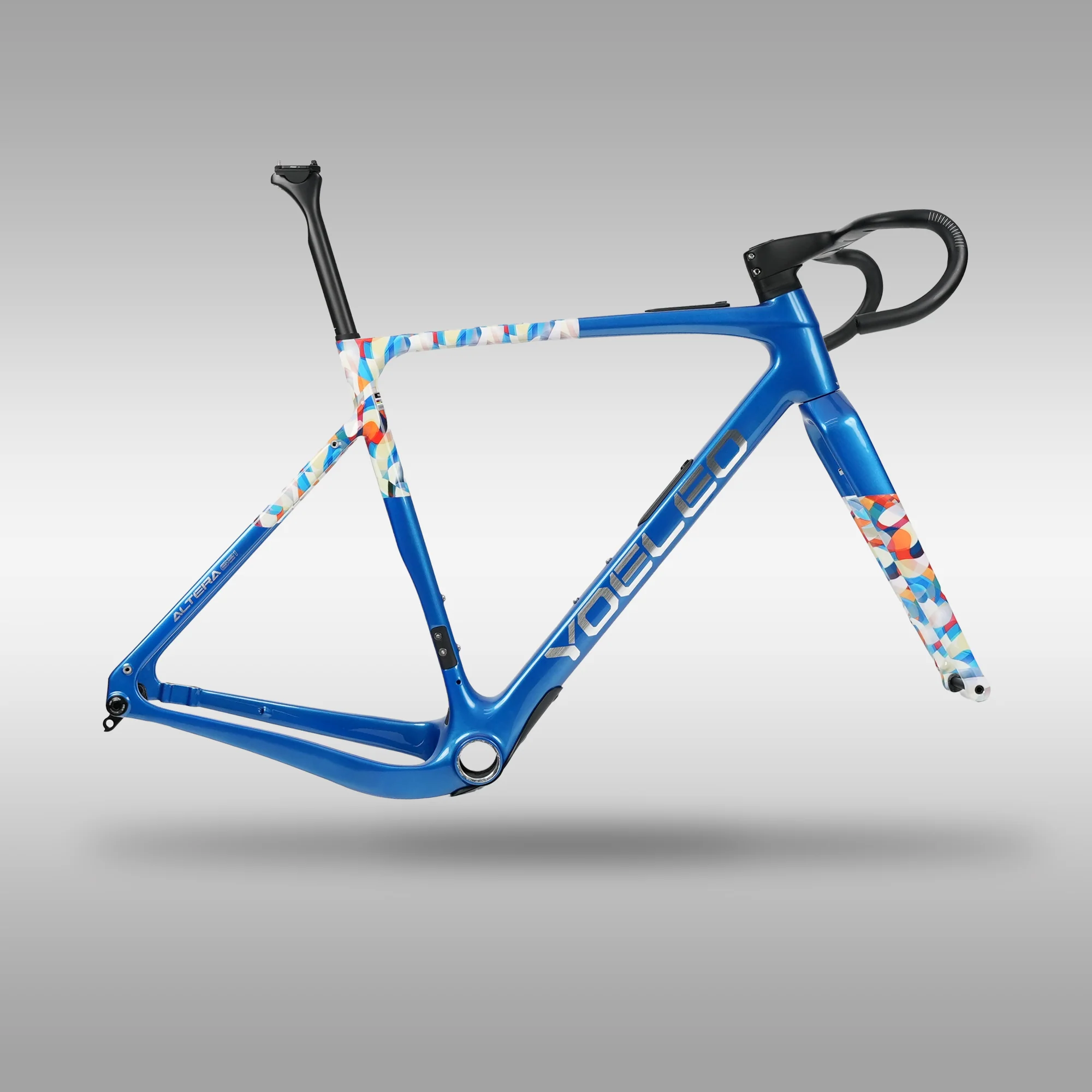

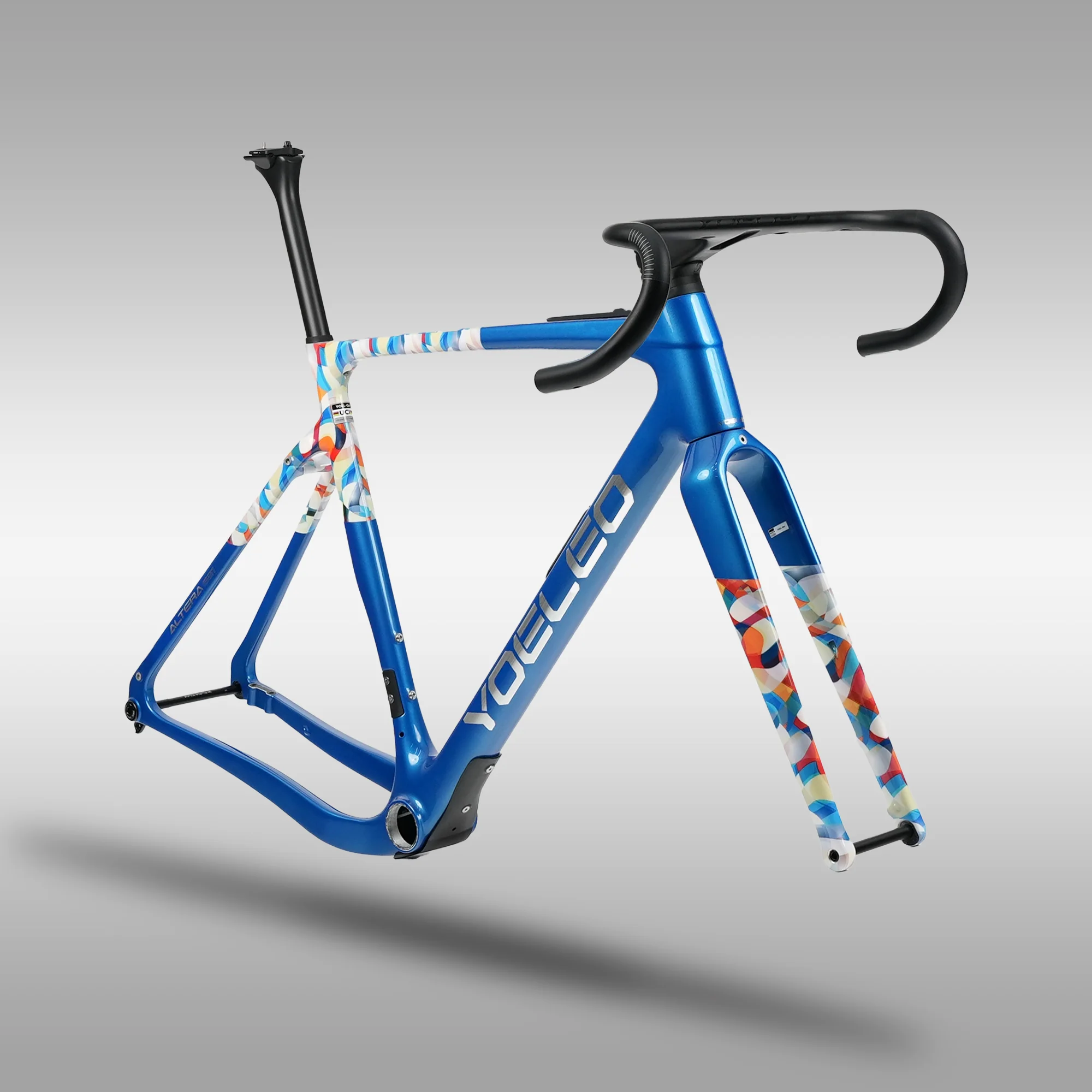

The Yoeleo Altera G21 DB is a carbon gravel frameset developed for
mixed-surface riding, endurance comfort, and stable all-road performance.

Designed around modern gravel standards, it delivers predictable handling,
efficient power transfer, and long-distance reliability across fast gravel
and endurance-oriented riding conditions.

  • ✔ Prices include VAT
  • ✔ Free shipping on orders over €100
  • ✔ 6-year manufacturer warranty
  • ✔ Lead time: approx. 4 weeks
  • ✔ 14-day return policy

Available on backorder

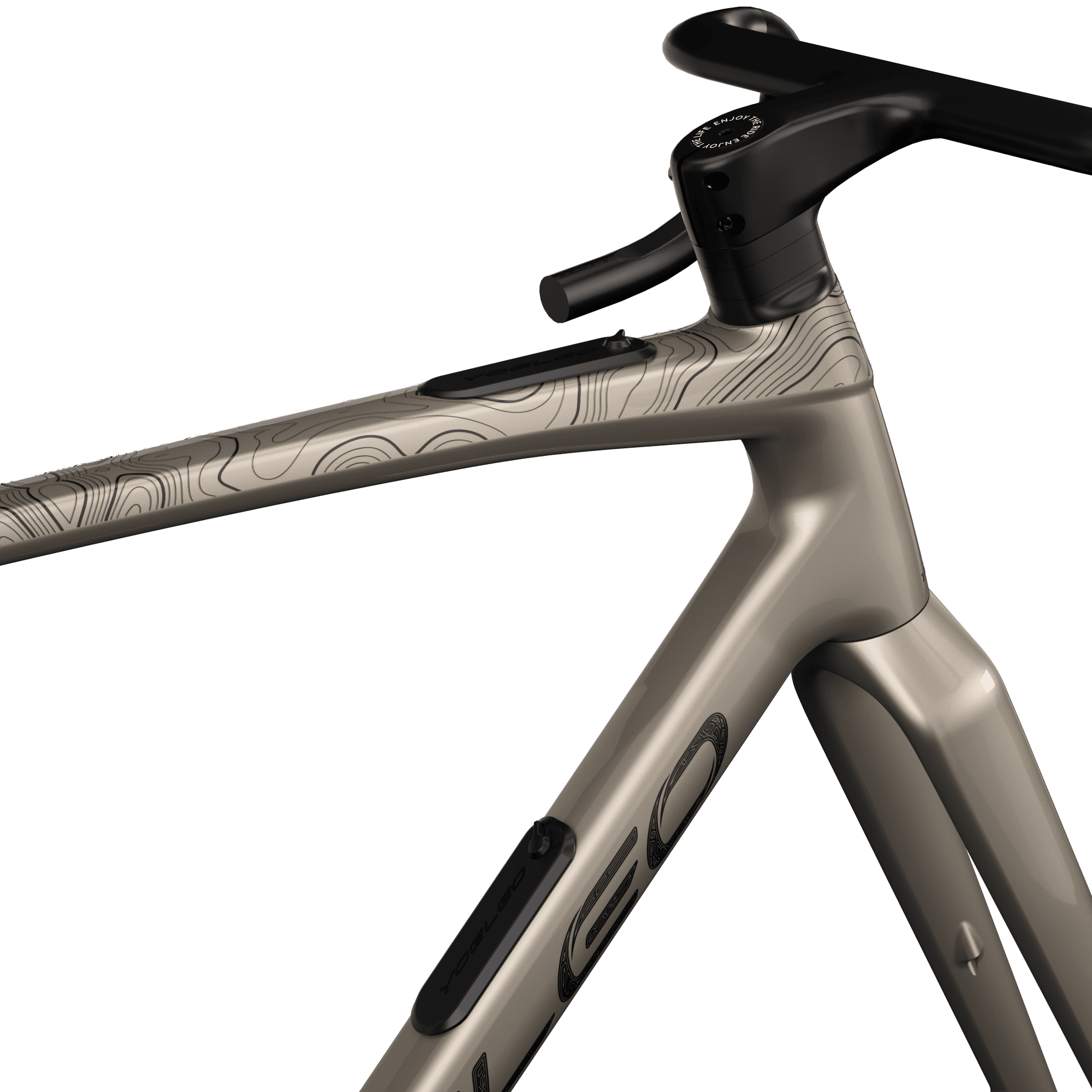

Select whether the frameset should include the rubber grommet for the integrated top tube storage system on the Altera G21. The grommet provides a sealed and clean finish for the storage opening.
Product total
Options total
Grand total
Category:

Description

Yoeleo Altera G21 DB — Engineering Overview

Technical Specifications

UCI Approved Yes
Frameset Includes Frame, Fork, Handlebar, Seatpost
Material High Modulus Toray T800 Carbon Fiber
Warranty 6 Years
Max Rider Weight 125 kg
Frame Sizes 45 / 49 / 52 / 54 / 56 / 58 / 60 cm
Handlebar Widths 400 / 420 / 440 mm
Stem Lengths 80 / 90 / 100 / 110 mm
Bottom Bracket T47 Inboard Bearing
BB Width 85.5 mm
Brake Mount Flat Mount Disc
Max Tire Width 700×53 mm / 650B×2.1”

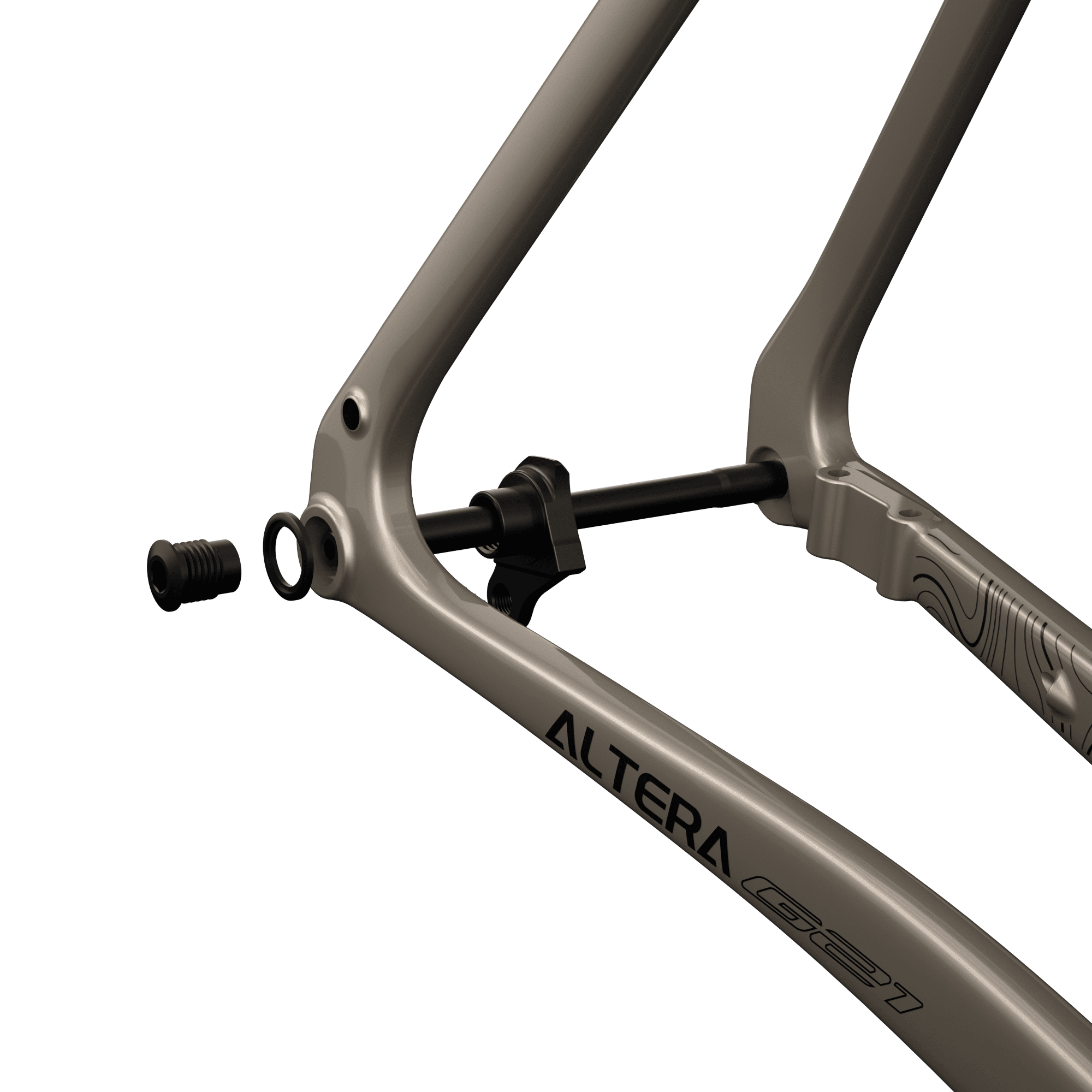

Rear Dropout 12×142 Thru Axle
Front Axle 12×100 Thru Axle
Rear Derailleur Hanger UDH – Replaceable
Head Tube Straight 1-1/2”
Fork Steerer 1-1/8” – 1-1/2”
Frame Weight (56 cm) Champagne: 1170 g
Raw: 1150 g
Fork Weight 480 g (painted, 56 cm)
Handlebar Weight 360 g ±15 g (420×90)
Seatpost Weight 95.2 g (without clamp)
Available Colors Champagne, Raw
Included Accessories Handlebar spacers: 3 mm (1×), 5 mm (1×), 10 mm (2×)
Headset bearing cap: 10 mm (1×)
Front axle (1×), Rear axle (1×)
